X96 Mini Android TV Box 4K - S905W Quad Core 2GB/16GB WiFi
X96 Mini Android TV Box - 4K Streaming Media Player
The X96 Mini transforms any HDMI-equipped television into a smart entertainment hub. Powered by the Amlogic S905W Quad Core ARM Cortex-A53 processor running at 2GHz, this compact Android 8.1 TV box delivers smooth 4K streaming and responsive performance for all your media needs.
4K Ultra HD Video Performance
Experience stunning visual quality with 4K×2K UHD output through HDMI 2.0A. The Penta-core Mali-450MP GPU handles VP9 Profile-2, H.265 HEVC, and H.264 AVC video formats up to 4K resolution. HDR10 and HLG support ensures enhanced contrast and color depth for compatible content. The device plays virtually any media format including MKV, MP4, AVI, MOV, and ISO files.
Memory and Storage Options

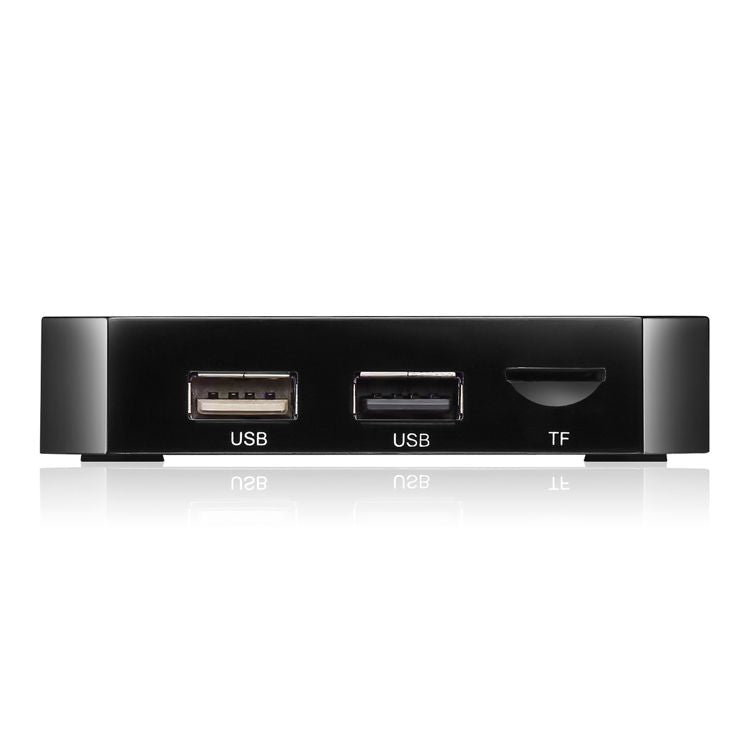

Available in two configurations: 1GB RAM with 8GB storage or 2GB DDR3 RAM with 16GB eMMC storage. The 2GB variant provides additional headroom for multitasking and app performance. Expand storage capacity using the TF card slot supporting cards up to 64GB, or connect external drives via the dual USB ports.
Wireless Connectivity
Built-in IEEE 802.11 b/g/n WiFi operates on the 2.4GHz band for wireless network access. For stable wired connections, use the RJ45 Ethernet port. The device supports popular streaming platforms including Netflix, YouTube, Hulu, and Flixster, plus social applications like Skype for video calls.
Comprehensive Audio Support
The MediaCPU with DSP audio processing handles MP3, AAC, WMA, RM, FLAC, and Ogg formats. Built-in stereo audio DAC and SPDIF/IEC958 output enable 7.1/5.1 channel down-mixing for immersive sound. Concurrent dual audio output supports analog+PCM or I2S+PCM combinations.
Multiple Input/Output Options

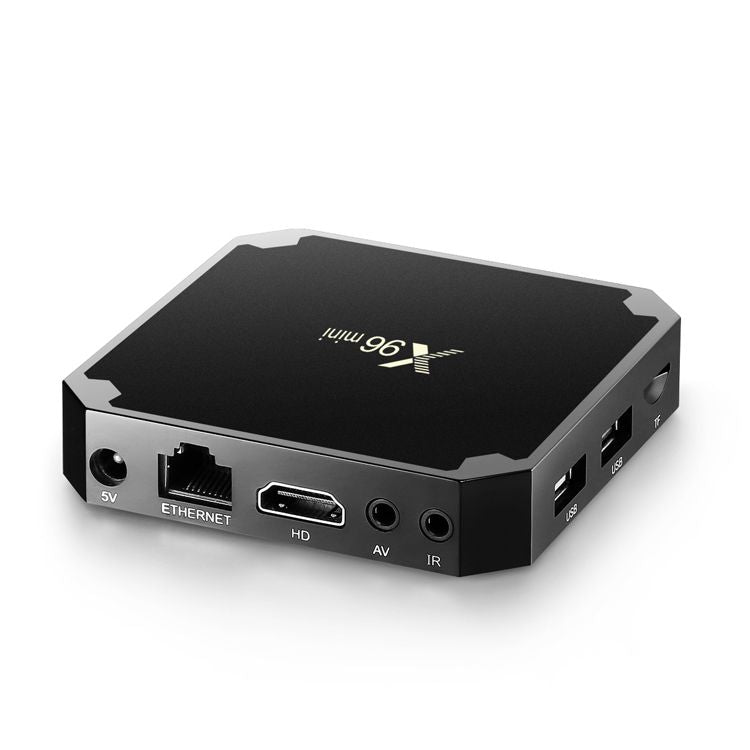

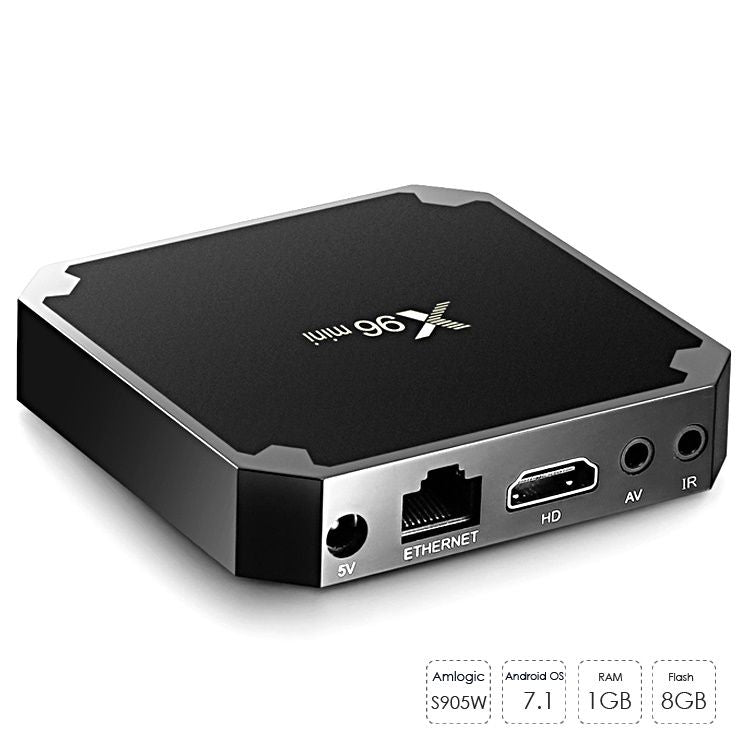

Connect via HDMI 2.0A for 4K output, or use the AV OUT port for 480i/576i standard definition displays. Two USB ports accommodate external storage and peripherals. The IR receiver works with the included remote control. Compact dimensions of 82×82×17mm make placement flexible.
Package Contents

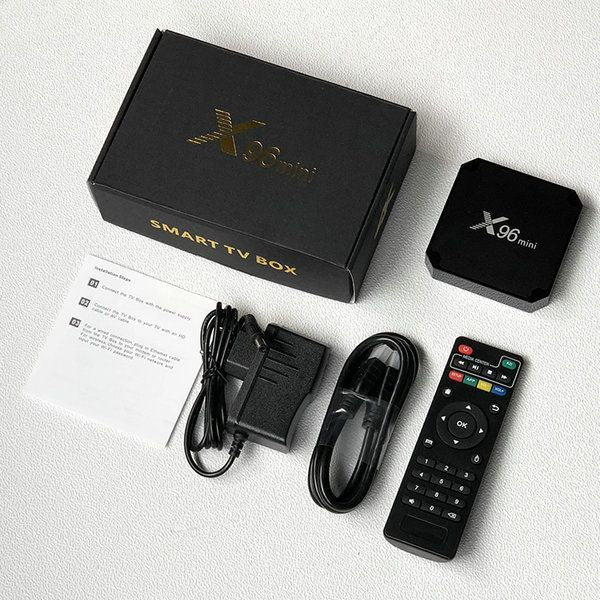

Each unit includes the X96 Mini TV box, HDMI cable, IR remote control, power adapter (DC 5V/2A), user manual, and packaging. The LED indicator displays blue during operation and red in standby mode. Download additional applications from Android Market or Amazon App Store to customize functionality.
Technical Specifications
| X96mini (S905W) | ||||||||
| CPU | Amlogic S905W Quad Core ARM Cortex A53 @2GHz | |||||||
| GPU | Penta-core Mali-450MP GPU @ 750MHz, | |||||||
| Memory | DDR31GB | |||||||
| Flash | eMMC8GB | |||||||
| WiFi | IEEE 802.11 b/g/n | |||||||
| Moudle | Plastic : Black Color | |||||||
| I/O | 1*HDMI | 4K*2K UHD Output, HDMI 2.0A | ||||||
| 1*AV OUT | 480i/576i standard definition output | |||||||
| 2*USB | 1* USB Host Port ,1*USB Device | |||||||
| 1*IR Reciver | Remote Reciver Connect | |||||||
| 1*RJ45 | Ethernet Interface | |||||||
| 1*TF CARD | Support 4GB/8GB/16GB/32GB/64GB | |||||||
| Power | DC 5V/2ALED indicatorWorking Blue; StandbyRed | |||||||
| Software | ||||||||
| OS | Android 7.1.2 KD PLAYER 17.6 | |||||||
| Video | * AMLogic video Engine(AVE)with dedicated hardware decoders and encoders * Supports multiple "secured"video decoding sessions and simultaneous decoding and encoding * Video/Picture Decoding -VP9 Profile-2 up to 4K*2K -H.265 HEVC MP-10@L5.1 up to 4K*2K@ -H.264 AVC HP@L5.1 up to 4K*2K -H.264 MVC up to 1080P@60fps -MPEG-4 ASP@L5 up to 1080P@60fps(ISO-14496) -WMV/VC-1 SP/MP/AP up to 1080P@60fps -AVS-P16(AVS+) /AVS-P2 JiZhun Profile up to 1080P@60fps -MPEG2 MP/HL up to 1080P@60fps -MPEG1 MP/HL up to 1080P@60fps -RealVideo 8/9/10 up to 1080P@60fps * Low latency 1080P H.264 60fps encoder * HDR10 and HLG HDR Video Processing * Supports *.mkv,*.mpg,*.wmv,*.mpeg,*.dat,*.avi,*.mov,*.iso,*.mp4,*.rm and *.jpg file formats * Video/Picture Encoding -Independent JPEG and H.264 encoder with configurable performance/bit-rate -JPEG image encoding -H.264 video encoding up to 1080P@60fps with low latency |
|||||||
| Audio | Low power MediaCPU with DSP audio processing Supports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 7.1/5.1 down-mixing Built-in stereo audio DAC Built-in SPDIF/IEC958 and PCM serial digital audio input/output Supports concurrent dual audio stereo channel output with combination of analog+PCMo or I2S+PCM |
|||||||
| Image | HD JPEGBMPGIFPNGTIF | |||||||
| Language | English French German Spanish Italian etc multilateral languages | |||||||
| Appliactions | ||||||||
| Online | Browse all video websites,support Netflix,Hulu,Flixster, Youtube, etc. | |||||||
| Apps | Apps download freely form android marketamazon app store etc. | |||||||
| Medium | Local Media playback,Support HDD, U Disck ,TF Card . | |||||||
| Talk online | Support SKYPE video call ,MSN , facebook ,twitter ,QQ etc | |||||||
| Others | Support Email,office suit etc. Support DLNA function Support 2.4G wireless mouse/keyboard |
|||||||
| Packing | Product dimension | 82*82*17(mm) | ||||||
| Qty per unit packing | 1pc | |||||||
| Unit packing: (LxWxH) | 170*110*55(mm) | |||||||
| Unit packing (G.W.) | 0.425Kg | |||||||
| Qty per export carton | 20PCS | |||||||
| Export carton (WxHxL) | 370*290*240 mm | |||||||
| Export carton (G.W.) | 8.9Kg | |||||||
| Accessories | ||||||||
| 1HDMI cable *1 | ||||||||
| 2IR Remote *1 | ||||||||
| 3User Manual *1 | ||||||||
| 4Package box *1 | ||||||||
| 5Power adapter *1 | ||||||||
