VEVOR Motorized TV Lift 31" Stroke - 60" TV Mount Remote Control
Motorized TV Lift with Remote Control
The VEVOR motorized TV lift mechanism provides automated height adjustment for televisions up to 60 inches. With a 31.5-inch stroke length and 132 lbs load capacity, this electric TV mount accommodates LCD, LED, plasma, and curved televisions from major brands including Samsung, Sony, LG, Sharp, Insignia, Vizio, and Haier.
Height Adjustment Range
This TV lift operates with a 1000N motor that adjusts height from 42.3 inches to 73.8 inches at 15 mm/s. The 3-level hook adjustment system allows precise positioning at any height within the range. Control the lift through either the wireless remote or wire-connected hand controller.
Aluminum Alloy Construction
Built from powder-coated aluminum alloy plates, the 28.7-inch lift mechanism resists rust and maintains structural integrity under load. The material provides durability while supporting televisions up to 132 pounds without deformation.
Installation and Mounting

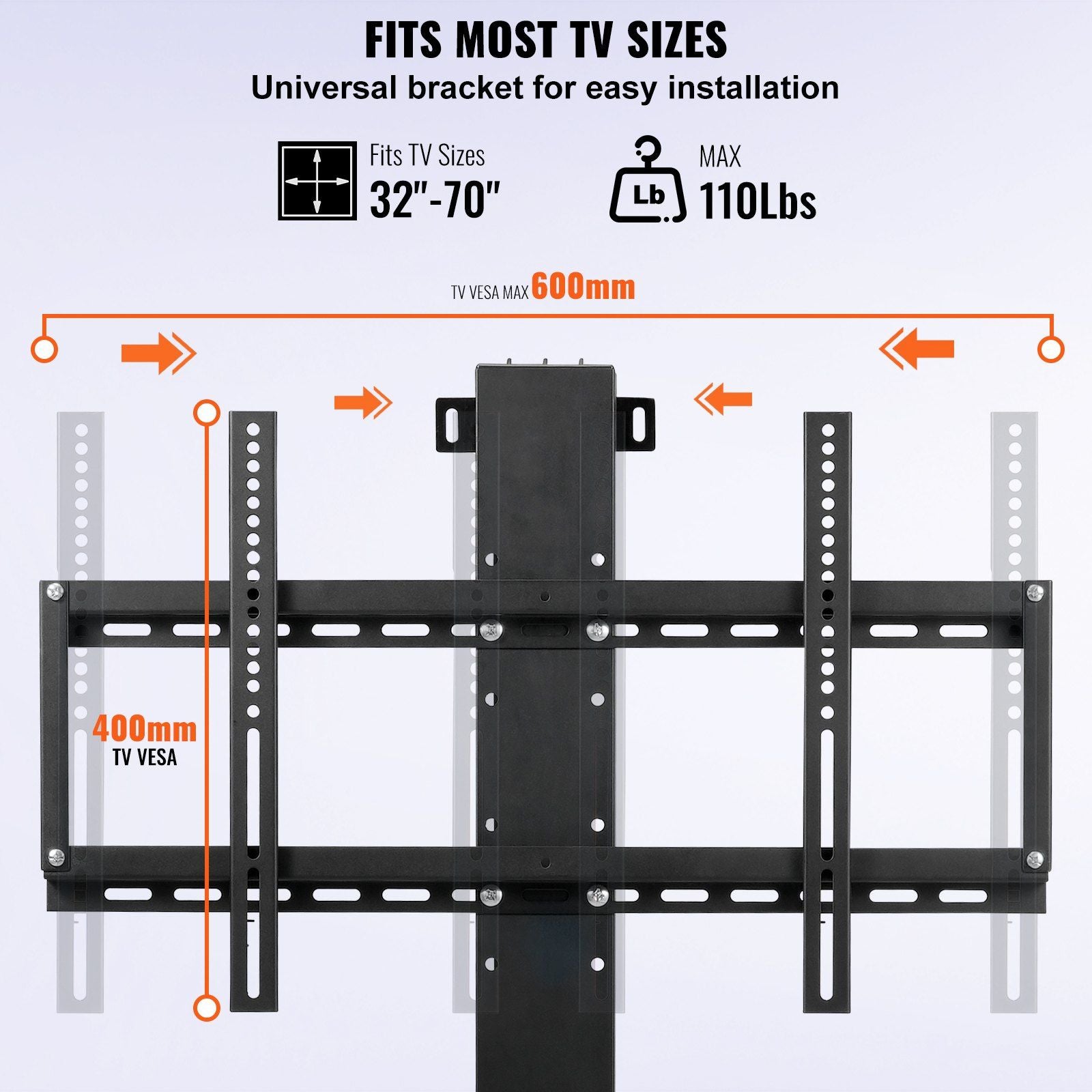

Mount the TV lift mechanism on walls or floors using the included M8 screw kit. The unit installs inside cabinets, counters, or directly against walls for both residential and commercial applications. Standard VESA screw holes on the mounting plate ensure compatibility with most television models.

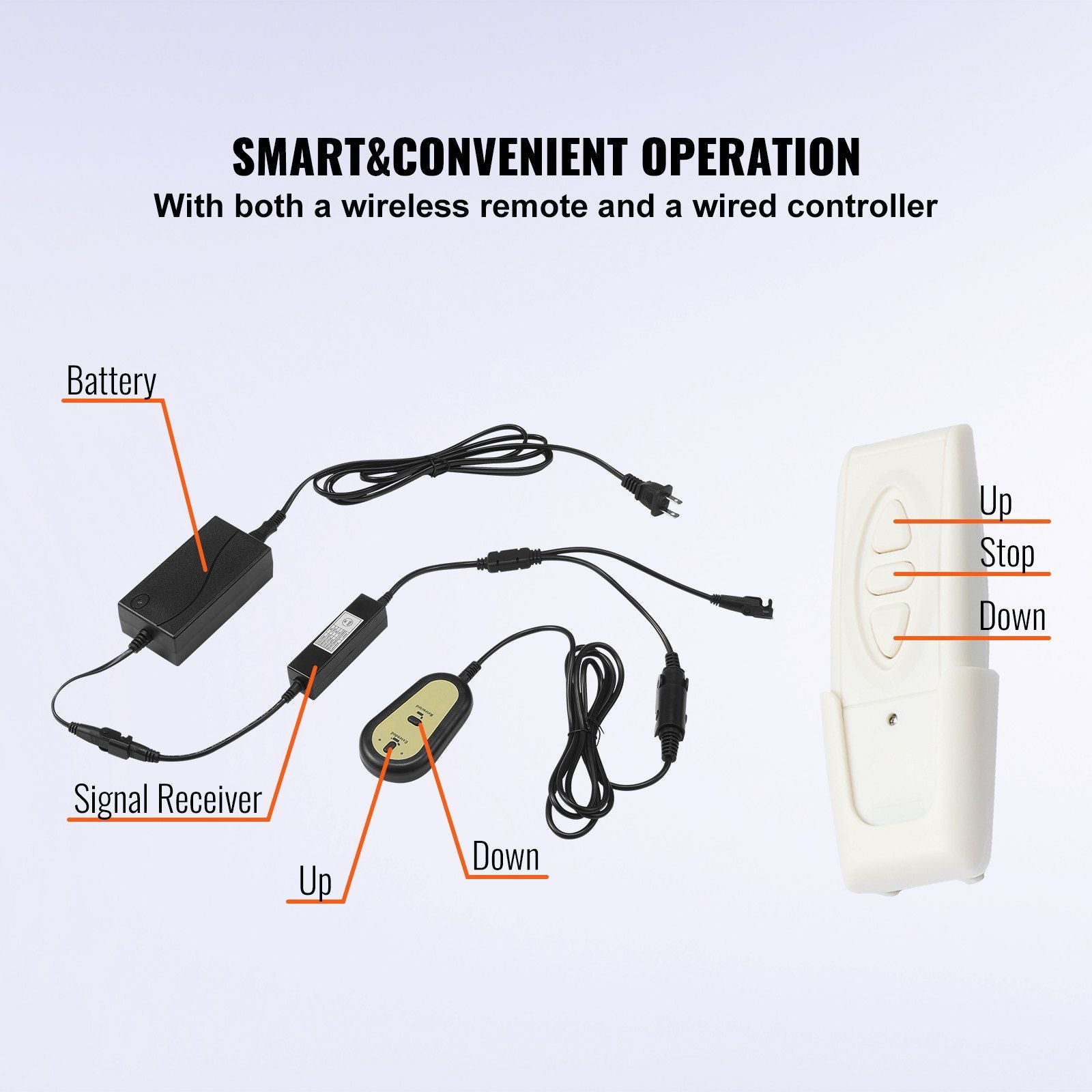

Control Options
Two control methods provide flexibility: a wireless remote controller for distance operation and a wired hand controller for direct access. The receiver kit connects to the power adapter for reliable signal reception.
Package Contents
- 1 x Motorized TV Lift (28.7" length, 31.5" stroke)
- 1 x Remote Controller
- 1 x Hand Controller
- 1 x Receiver Kit
- 1 x Screw Kit (M8)
- 1 x User Manual
Technical Specifications
- Material: Aluminum Alloy
- Compatible TV Size: Max 60"/152 cm
- Height Range: 42.3"-73.8" (107.4-187.4 cm)
- Lifting Speed: 15 mm/s
- Stroke Length: 31.5"/800 mm
- Load Capacity: 132 lbs
- Motor: 1000N
- Color: Black

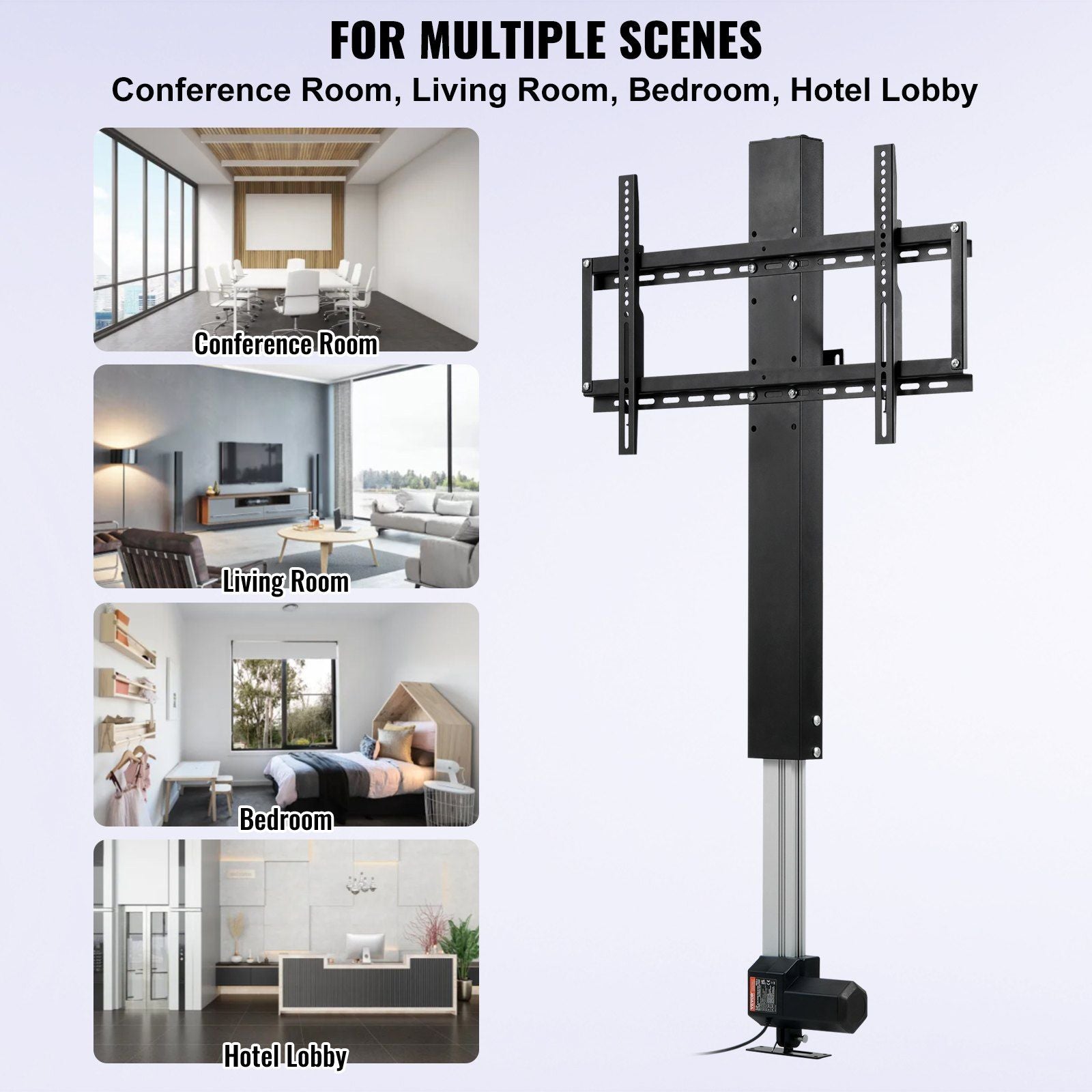

Application Settings
Suitable for bedrooms, living rooms, offices, meeting rooms, hotel lobbies, and shopping centers. The lift mechanism conceals televisions when not in use and raises them to optimal viewing height on demand.
